이 예는 Android의 Google 지도에서 터치와 터치 위치를 감지하는 방법을 보여줍니다.
1단계 − Android Studio에서 새 프로젝트를 만들고 파일 ⇒ 새 Google 지도 프로젝트로 이동한 다음 모든 필수 세부 정보를 입력하여 새 프로젝트를 만듭니다.
2단계 − res/layout/activity_main.xml에 다음 코드를 추가합니다.
<?xml version="1.0" encoding="utf-8"?> <fragment xmlns:android="https://schemas.android.com/apk/res/android" xmlns:tools="https://schemas.android.com/tools" android:id="@+id/map" android:name="com.google.android.gms.maps.SupportMapFragment" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".MapsActivity" />
3단계 − src/MainActivity.java
에 다음 코드 추가import androidx.fragment.app.FragmentActivity;
import android.os.Bundle;
import android.widget.Toast;
import com.google.android.gms.maps.CameraUpdateFactory;
import com.google.android.gms.maps.GoogleMap;
import com.google.android.gms.maps.OnMapReadyCallback;
import com.google.android.gms.maps.SupportMapFragment;
import com.google.android.gms.maps.model.LatLng;
import com.google.android.gms.maps.model.MarkerOptions;
public class MapsActivity extends FragmentActivity implements
OnMapReadyCallback, GoogleMap.OnCameraMoveStartedListener,
GoogleMap.OnCameraMoveListener,
GoogleMap.OnCameraMoveCanceledListener,
GoogleMap.OnCameraIdleListener {
private GoogleMap mMap;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_maps);
// Obtain the SupportMapFragment and get notified when the map is ready to be used.
SupportMapFragment mapFragment = (SupportMapFragment)
getSupportFragmentManager().findFragmentById(R.id.map);
mapFragment.getMapAsync(this);
}
@Override
public void onMapReady(GoogleMap googleMap) {
mMap = googleMap;
// Add a marker in Sydney and move the camera LatLng sydney = new LatLng(-34, 151);
mMap.addMarker(new MarkerOptions().position(sydney).title("Marker in Sydney"));
mMap.moveCamera(CameraUpdateFactory.newLatLng(sydney));
mMap.setOnCameraIdleListener(this);
mMap.setOnCameraMoveStartedListener(this);
mMap.setOnCameraMoveListener(this);
mMap.setOnCameraMoveCanceledListener(this);
}
@Override
public void onCameraMoveStarted(int reason) {
if (reason == GoogleMap.OnCameraMoveStartedListener.REASON_GESTURE) {
Toast.makeText(this, "The user gestured on the map.", Toast.LENGTH_SHORT).show();
}
else if (reason == GoogleMap.OnCameraMoveStartedListener.REASON_API_ANIMATION) {
Toast.makeText(this, "The user tapped something on the map.", Toast.LENGTH_SHORT).show();
}
else if (reason == GoogleMap.OnCameraMoveStartedListener.REASON_DEVELOPER_ANIMATION) {
Toast.makeText(this, "The app moved the camera.", Toast.LENGTH_SHORT).show();
}
}
@Override
public void onCameraMove() {
Toast.makeText(this, "The camera is moving.", Toast.LENGTH_SHORT).show();
}
@Override
public void onCameraMoveCanceled() {
Toast.makeText(this, "Camera movement canceled.", Toast.LENGTH_SHORT).show();
}
@Override
public void onCameraIdle() {
Toast.makeText(this, "The camera has stopped moving.", Toast.LENGTH_SHORT).show();
}
} 4단계 − google_maps_api.xml에 ma 키 추가
<resources> <string name="google_maps_key" templateMergeStrategy="preserve" translatable="false">YOUR MAP KEY</string> </resources>
5단계 − androidManifest.xml에 다음 코드 추가
<?xml version="1.0" encoding="utf-8"?> <manifest xmlns:android="https://schemas.android.com/apk/res/android" package="app.com.myapplication"> <application android:allowBackup="true" android:icon="@mipmap/ic_launcher" android:label="@string/app_name" android:roundIcon="@mipmap/ic_launcher_round" android:supportsRtl="true" android:theme="@style/AppTheme"> <activity android:name=".MapsActivity" android:label="@string/title_activity_maps"> <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.LAUNCHER" /> </intent-filter> </activity> <meta-data android:name="com.google.android.geo.API_KEY" android:value="@string/google_maps_key" /> </application> <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" /> </manifest>

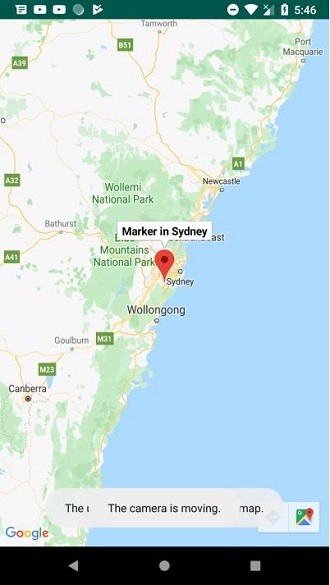

응용 프로그램을 실행해 보겠습니다. 실제 Android 모바일 장치를 컴퓨터에 연결했다고 가정합니다. Android 스튜디오에서 앱을 실행하려면 프로젝트의 활동 파일 중 하나를 열고 도구 모음에서 실행 아이콘을 클릭합니다. 모바일 장치를 옵션으로 선택한 다음 기본 화면을 표시할 모바일 장치를 확인하십시오 -
