내비게이션 드로어(Navigation Drawer)는 화면 가장자리에서 좌우로 슬라이드하여 열리는 메뉴 패널로, 대부분의 구글 앱(Gmail, 유튜브 등)에서 흔히 볼 수 있는 UI 요소입니다. 이 글에서는 안드로이드 스튜디오에서 DrawerLayout과 NavigationView를 활용해 커스텀 내비게이션 드로어를 단계별로 구현하는 방법을 알아보겠습니다.
1단계 — 새 프로젝트 생성
안드로이드 스튜디오에서 File ⇒ New Project로 이동해 새 프로젝트를 생성하고, 프로젝트 생성에 필요한 모든 정보를 입력합니다.
2단계 — 메인 레이아웃 작성
res/layout/activity_main.xml 파일에 아래 코드를 추가합니다. 전체 화면을 감싸는 DrawerLayout 안에 앱 바(app_bar_main)와 NavigationView가 포함된 구조입니다.
<? xml version= "1.0" encoding= "utf-8" ?> <android.support.v4.widget.DrawerLayout xmlns: android = "https://schemas.android.com/apk/res/android" xmlns: app = "https://schemas.android.com/apk/res-auto" xmlns: tools = "https://schemas.android.com/tools" android :id= "@+id/drawer_layout" android :layout_width= "match_parent" android :layout_height= "match_parent" android :fitsSystemWindows= "true" tools :openDrawer= "start" > <include layout= "@layout/app_bar_main" android :layout_width= "match_parent" android :layout_height= "match_parent" /> <android.support.design.widget.NavigationView android :id= "@+id/nav_view" android :layout_width= "wrap_content" android :layout_height= "match_parent" android :layout_gravity= "start" android :fitsSystemWindows= "true" app :headerLayout= "@layout/nav_header_main" app :menu= "@menu/activity_main_drawer" /> </android.support.v4.widget.DrawerLayout>
3단계 — 드로어 헤더 레이아웃 작성
res/layout/nav_header_main.xml 파일에 아래 코드를 추가합니다. 헤더에는 프로필 이미지와 제목·부제목 텍스트가 세로로 배치됩니다.
<? xml version= "1.0" encoding= "utf-8" ?> <LinearLayout xmlns: android = "https://schemas.android.com/apk/res/android" xmlns: app = "https://schemas.android.com/apk/res-auto" android :layout_width= "match_parent" android :layout_height= "@dimen/nav_header_height" android :background= "@drawable/side_nav_bar" android :gravity= "bottom" android :orientation= "vertical" android :paddingLeft= "@dimen/activity_horizontal_margin" android :paddingTop= "@dimen/activity_vertical_margin" android :paddingRight= "@dimen/activity_horizontal_margin" android :paddingBottom= "@dimen/activity_vertical_margin" android :theme= "@style/ThemeOverlay.AppCompat.Dark" > <ImageView android :id= "@+id/imageView" android :layout_width= "wrap_content" android :layout_height= "wrap_content" android :contentDescription= "@string/nav_header_desc" android :paddingTop= "@dimen/nav_header_vertical_spacing" app :srcCompat= "@mipmap/ic_launcher_round" /> <TextView android :layout_width= "match_parent" android :layout_height= "wrap_content" android :paddingTop= "@dimen/nav_header_vertical_spacing" android :text= "@string/nav_header_title" android :textAppearance= "@style/TextAppearance.AppCompat.Body1" /> <TextView android :id= "@+id/textView" android :layout_width= "wrap_content" android :layout_height= "wrap_content" android :text= "@string/nav_header_subtitle" /> </LinearLayout>
4단계 — 앱 바 레이아웃 작성
res/layout/app_bar_main.xml 파일에 아래 코드를 추가합니다. 툴바와 플로팅 액션 버튼(FAB)이 포함된 CoordinatorLayout 구조입니다.
<? xml version= "1.0" encoding= "utf-8" ?> <android.support.design.widget.CoordinatorLayout xmlns: android = "https://schemas.android.com/apk/res/android" xmlns: app = "https://schemas.android.com/apk/res-auto" xmlns: tools = "https://schemas.android.com/tools" android :layout_width= "match_parent" android :layout_height= "match_parent" tools :context= ".MainActivity" > <android.support.design.widget.AppBarLayout android :layout_width= "match_parent" android :layout_height= "wrap_content" android :theme= "@style/AppTheme.AppBarOverlay" > <android.support.v7.widget.Toolbar android :id= "@+id/toolbar" android :layout_width= "match_parent" android :layout_height= "?attr/actionBarSize" android :background= "?attr/colorPrimary" app :popupTheme= "@style/AppTheme.PopupOverlay" /> </android.support.design.widget.AppBarLayout> <include layout= "@layout/content_main" /> <android.support.design.widget.FloatingActionButton android :id= "@+id/fab" android :layout_width= "wrap_content" android :layout_height= "wrap_content" android :layout_gravity= "bottom|end" android :layout_margin= "@dimen/fab_margin" app :srcCompat= "@android:drawable/ic_dialog_email" /> </android.support.design.widget.CoordinatorLayout>
5단계 — 콘텐츠 레이아웃 작성
res/layout/content_main.xml 파일에 아래 코드를 추가합니다. 실제 콘텐츠가 표시되는 영역으로, 필요에 따라 원하는 위젯을 배치하면 됩니다.
<? xml version= "1.0" encoding= "utf-8" ?> <android.support.constraint.ConstraintLayout xmlns: android = "https://schemas.android.com/apk/res/android" xmlns: app = "https://schemas.android.com/apk/res-auto" xmlns: tools = "https://schemas.android.com/tools" android :layout_width= "match_parent" android :layout_height= "match_parent" app :layout_behavior= "@string/appbar_scrolling_view_behavior" tools :context= ".MainActivity" tools :showIn= "@layout/app_bar_main" > </android.support.constraint.ConstraintLayout>
6단계 — 드로어 메뉴 정의
res/menu/activity_main_drawer.xml 파일에 아래 코드를 추가합니다. 카메라, 갤러리, 슬라이드쇼, 도구 항목을 하나의 그룹으로 묶고, 공유·보내기 항목은 별도의 'Communicate' 섹션으로 구성했습니다.
<? xml version= "1.0" encoding= "utf-8" ?> <menu xmlns: android = "https://schemas.android.com/apk/res/android" xmlns: tools = "https://schemas.android.com/tools" tools :showIn= "navigation_view" > <group android :checkableBehavior= "single" > <item android :id= "@+id/nav_camera" android :icon= "@drawable/ic_menu_camera" android :title= "Import" /> <item android :id= "@+id/nav_gallery" android :icon= "@drawable/ic_menu_gallery" android :title= "Gallery" /> <item android :id= "@+id/nav_slideshow" android :icon= "@drawable/ic_menu_slideshow" android :title= "Slideshow" /> <item android :id= "@+id/nav_manage" android :icon= "@drawable/ic_menu_manage" android :title= "Tools" /> </group> <item android :title= "Communicate" > <menu> <item android :id= "@+id/nav_share" android :icon= "@drawable/ic_menu_share" android :title= "Share" /> <item android :id= "@+id/nav_send" android :icon= "@drawable/ic_menu_send" android :title= "Send" /> </menu> </item> </menu>
7단계 — MainActivity 자바 코드 작성
src/MainActivity.java 파일에 아래 코드를 추가합니다. ActionBarDrawerToggle을 통해 툴바와 드로어를 연결하고, 메뉴 클릭 이벤트를 처리합니다.
package app.tutorialspoint.com.sample ;
import android.os.Bundle ;
import android.support.annotation. NonNull ;
import android.support.design.widget.FloatingActionButton ;
import android.support.design.widget.Snackbar ;
import android.view.View ;
import android.support.design.widget.NavigationView ;
import android.support.v4.view.GravityCompat ;
import android.support.v4.widget.DrawerLayout ;
import android.support.v7.app.ActionBarDrawerToggle ;
import android.support.v7.app.AppCompatActivity ;
import android.support.v7.widget.Toolbar ;
import android.view.Menu ;
import android.view.MenuItem ;
public class MainActivity extends AppCompatActivity
implements NavigationView.OnNavigationItemSelectedListener {
@Override
protected void onCreate (Bundle savedInstanceState) {
super .onCreate(savedInstanceState) ;
setContentView(R.layout. activity_main ) ;
Toolbar toolbar = findViewById(R.id. toolbar ) ;
setSupportActionBar(toolbar) ;
FloatingActionButton fab = findViewById(R.id. fab ) ;
fab.setOnClickListener( new View.OnClickListener() {
@Override
public void onClick (View view) {
Snackbar. make (view , "Replace with your own action" ,
Snackbar. LENGTH_LONG )
.setAction( "Action" , null ).show() ;
}
}) ;
DrawerLayout drawer = findViewById(R.id. drawer_layout ) ;
ActionBarDrawerToggle toggle = new ActionBarDrawerToggle(
this, drawer , toolbar , R.string. navigation_drawer_open ,
R.string. navigation_drawer_close ) ;
drawer.addDrawerListener(toggle) ;
toggle.syncState() ;
NavigationView navigationView = findViewById(R.id. nav_view ) ;
navigationView.setNavigationItemSelectedListener( this ) ;
}
@Override
public void onBackPressed () {
DrawerLayout drawer = findViewById(R.id. drawer_layout ) ;
if (drawer.isDrawerOpen(GravityCompat. START )) {
drawer.closeDrawer(GravityCompat. START ) ;
} else {
super .onBackPressed() ;
}
}
@Override
public boolean onCreateOptionsMenu (Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu. main , menu) ;
return true;
}
@Override
public boolean onOptionsItemSelected (MenuItem item) {
int id = item.getItemId() ;
if (id == R.id. action_settings ) {
return true;
}
return super .onOptionsItemSelected(item) ;
}
@SuppressWarnings ( "StatementWithEmptyBody" )
@Override
public boolean onNavigationItemSelected ( @NonNull MenuItem item) {
// Handle navigation view item clicks here.
int id = item.getItemId() ;
if (id == R.id. nav_camera ) {
// Handle the camera action
} else if (id == R.id. nav_gallery ) {
} else if (id == R.id. nav_slideshow ) {
} else if (id == R.id. nav_manage ) {
} else if (id == R.id. nav_share ) {
} else if (id == R.id. nav_send ) {
}
DrawerLayout drawer = findViewById(R.id. drawer_layout ) ;
drawer.closeDrawer(GravityCompat. START ) ;
return true;
}
}8단계 — 매니페스트 설정
AndroidManifest.xml 파일에 아래 코드를 추가합니다. MainActivity에 NoActionBar 테마를 적용해 커스텀 툴바가 정상적으로 표시되도록 합니다.
<? xml version= "1.0" encoding= "utf-8" ?> <manifest xmlns: android = "https://schemas.android.com/apk/res/android" package= "app.tutorialspoint.com.sample" > <application android :allowBackup= "true" android :icon= "@mipmap/ic_launcher" android :label= "@string/app_name" android :roundIcon= "@mipmap/ic_launcher_round" android :supportsRtl= "true" android :theme= "@style/AppTheme" > <activity android :name= ".MainActivity" android :theme= "@style/AppTheme.NoActionBar" > <intent-filter> <action android :name= "android.intent.action.MAIN" /> <category android :name= "android.intent.category.LAUNCHER" /> </intent-filter> </activity> </application> </manifest>
앱 실행 및 결과 확인

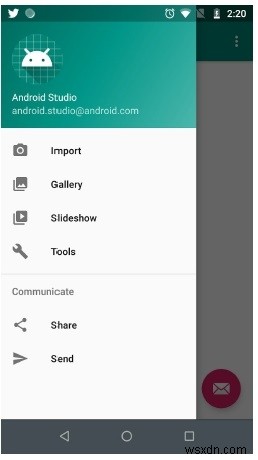

이제 애플리케이션을 실행해 보겠습니다. 실제 안드로이드 모바일 기기가 컴퓨터에 연결되어 있다고 가정합니다. 안드로이드 스튜디오에서 프로젝트의 액티비티 파일 중 하나를 연 뒤 툴바의 Run(실행) 아이콘을 클릭하고, 옵션 목록에서 본인의 모바일 기기를 선택하세요. 실행이 완료되면 기기 화면에 아래와 같은 기본 화면이 표시됩니다.
