이 예제는 Android에서 소켓을 사용하여 데이터를 보내고 받는 방법을 보여줍니다.
서버 및 클라이언트 프로젝트 필요
서버
1단계 − Android Studio에서 새 프로젝트를 생성하고 파일 ⇒ 새 프로젝트로 이동하여 필요한 모든 세부 정보를 입력하여 새 프로젝트를 생성합니다.
2단계 − res/layout/activity_main.xml에 다음 코드를 추가합니다.
<?xml version = "1.0" encoding = "utf-8"?> <RelativeLayout xmlns:android = "https://schemas.android.com/apk/res/android" xmlns:tools = "https://schemas.android.com/tools" android:layout_width = "match_parent" android:layout_height = "match_parent" android:layout_margin = "16dp" tools:context = ".MainActivity"> <TextView android:id = "@+id/tvIP" android:layout_width = "wrap_content" android:layout_height = "wrap_content" android:textAppearance = "@style/Base.TextAppearance.AppCompat.Medium" /> <TextView android:id = "@+id/tvPort" android:layout_width = "wrap_content" android:layout_height = "wrap_content" android:layout_below = "@+id/tvIP" android:textAppearance = "@style/Base.TextAppearance.AppCompat.Medium" /> <TextView android:id = "@+id/tvConnectionStatus" android:layout_width = "match_parent" android:layout_height = "wrap_content" android:layout_below = "@+id/tvPort" android:textAppearance = "@style/Base.TextAppearance.AppCompat.Medium" /> <TextView android:id = "@+id/tvMessages" android:layout_width = "match_parent" android:layout_height = "wrap_content" android:layout_above = "@+id/etMessage" android:layout_below = "@+id/tvConnectionStatus" android:inputType = "textMultiLine" android:textAppearance = "@style/Base.TextAppearance.AppCompat.Medium" /> <EditText android:id = "@+id/etMessage" android:layout_width = "match_parent" android:layout_height = "wrap_content" android:layout_above = "@+id/btnSend" android:hint = "Enter Message" android:inputType = "text" /> <Button android:id = "@+id/btnSend" android:layout_width = "match_parent" android:layout_height = "wrap_content" android:layout_alignParentBottom = "true" android:text = "SEND" /> </RelativeLayout>
3단계 − src/MainActivity.java
에 다음 코드 추가package com.server.myapplication.server;
import android.annotation.SuppressLint;
import android.net.wifi.WifiInfo;
import android.net.wifi.WifiManager;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.InetAddress;
import java.net.ServerSocket;
import java.net.Socket;
import java.net.UnknownHostException;
import java.nio.ByteBuffer;
import java.nio.ByteOrder;
@SuppressLint("SetTextI18n")
public class MainActivity extends AppCompatActivity {
ServerSocket serverSocket;
Thread Thread1 = null;
TextView tvIP, tvPort;
TextView tvMessages;
EditText etMessage;
Button btnSend;
public static String SERVER_IP = "";
public static final int SERVER_PORT = 8080;
String message;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
tvIP = findViewById(R.id.tvIP);
tvPort = findViewById(R.id.tvPort);
tvMessages = findViewById(R.id.tvMessages);
etMessage = findViewById(R.id.etMessage);
btnSend = findViewById(R.id.btnSend);
try {
SERVER_IP = getLocalIpAddress();
} catch (UnknownHostException e) {
e.printStackTrace();
}
Thread1 = new Thread(new Thread1());
Thread1.start();
btnSend.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
message = etMessage.getText().toString().trim();
if (!message.isEmpty()) {
new Thread(new Thread3(message)).start();
}
}
});
}
private String getLocalIpAddress() throws UnknownHostException {
WifiManager wifiManager = (WifiManager) getApplicationContext().getSystemService(WIFI_SERVICE);
assert wifiManager ! = null;
WifiInfo wifiInfo = wifiManager.getConnectionInfo();
int ipInt = wifiInfo.getIpAddress();
return InetAddress.getByAddress(ByteBuffer.allocate(4).order(ByteOrder.LITTLE_ENDIAN).putInt(ipInt).array()).getHostAddress();
}
private PrintWriter output;
private BufferedReader input;
class Thread1 implements Runnable {
@Override
public void run() {
Socket socket;
try {
serverSocket = new ServerSocket(SERVER_PORT);
runOnUiThread(new Runnable() {
@Override
public void run() {
tvMessages.setText("Not connected");
tvIP.setText("IP: " + SERVER_IP);
tvPort.setText("Port: " + String.valueOf(SERVER_PORT));
}
});
try {
socket = serverSocket.accept();
output = new PrintWriter(socket.getOutputStream());
input = new BufferedReader(new InputStreamReader(socket.getInputStream()));
runOnUiThread(new Runnable() {
@Override
public void run() {
tvMessages.setText("Connected\n");
}
});
new Thread(new Thread2()).start();
} catch (IOException e) {
e.printStackTrace();
}
} catch (IOException e) {
e.printStackTrace();
}
}
}
private class Thread2 implements Runnable {
@Override
public void run() {
while (true) {
try {
final String message = input.readLine();
if (message ! = null) {
runOnUiThread(new Runnable() {
@Override
public void run() {
tvMessages.append("client:" + message + "\n");
}
});
} else {
Thread1 = new Thread(new Thread1());
Thread1.start();
return;
}
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
class Thread3 implements Runnable {
private String message;
Thread3(String message) {
this.message = message;
}
@Override
public void run() {
output.write(message);
output.flush();
runOnUiThread(new Runnable() {
@Override
public void run() {
tvMessages.append("server: " + message + "\n");
etMessage.setText("");
}
});
}
}
} 4단계 − androidManifest.xml에 다음 코드 추가
<?xml version = "1.0" encoding = "utf-8"?> <manifest xmlns:android = "https://schemas.android.com/apk/res/android" package = "com.example.myapplication"> <uses-permission android:name = "android.permission.ACCESS_WIFI_STATE" /> <uses-permission android:name = "android.permission.ACCESS_NETWORK_STATE" /> <uses-permission android:name = "android.permission.INTERNET"/> <application android:allowBackup = "true" android:icon = "@mipmap/ic_launcher" android:label = "@string/app_name" android:roundIcon = "@mipmap/ic_launcher_round" android:supportsRtl = "true" android:theme = "@style/AppTheme"> <activity android:name = ".MainActivity" android:label = "Server"> <intent-filter> <action android:name = "android.intent.action.MAIN" /> <category android:name = "android.intent.category.LAUNCHER" /> </intent-filter> </activity> </application> </manifest>
클라이언트
1단계 − Android Studio에서 새 프로젝트를 생성하고 파일 ⇒ 새 프로젝트로 이동하여 필요한 모든 세부 정보를 입력하여 새 프로젝트를 생성합니다.
2단계 − res/layout/activity_main.xml에 다음 코드를 추가합니다.
<?xml version = "1.0" encoding = "utf-8"?> <RelativeLayout xmlns:android = "https://schemas.android.com/apk/res/android" xmlns:tools = "https://schemas.android.com/tools" android:layout_width = "match_parent" android:layout_height = "match_parent" android:layout_margin = "16dp" tools:context = ".MainActivity"> <EditText android:id = "@+id/etIP" android:layout_width = "match_parent" android:layout_height = "wrap_content" android:hint = "IP-Address" android:inputType = "text" /> <EditText android:id = "@+id/etPort" android:layout_width = "match_parent" android:layout_height = "wrap_content" android:layout_below = "@+id/etIP" android:hint = "Port No" android:inputType = "number" /> <Button android:id = "@+id/btnConnect" android:layout_width = "match_parent" android:layout_height = "wrap_content" android:layout_below = "@+id/etPort" android:layout_gravity = "center" android:layout_marginTop = "16dp" android:text = "Connect To Server" /> <TextView android:id = "@+id/tvMessages" android:layout_width = "match_parent" android:layout_height = "wrap_content" android:layout_above = "@+id/etMessage" android:layout_below = "@+id/btnConnect" android:inputType = "textMultiLine" android:textAppearance = "@style/Base.TextAppearance.AppCompat.Medium" /> <EditText android:id = "@+id/etMessage" android:layout_width = "match_parent" android:layout_height = "wrap_content" android:layout_above = "@+id/btnSend" android:hint = "Enter Message" android:inputType = "text" /> <Button android:id = "@+id/btnSend" android:layout_width = "match_parent" android:layout_height = "wrap_content" android:layout_alignParentBottom = "true" android:text = "SEND" /> </RelativeLayout>
3단계 − res/layout/MainActivity.java에 다음 코드를 추가합니다.
package com.client.myapplication.client;
import android.annotation.SuppressLint;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.Socket;
@SuppressLint("SetTextI18n")
public class MainActivity extends AppCompatActivity {
Thread Thread1 = null;
EditText etIP, etPort;
TextView tvMessages;
EditText etMessage;
Button btnSend;
String SERVER_IP;
int SERVER_PORT;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
etIP = findViewById(R.id.etIP);
etPort = findViewById(R.id.etPort);
tvMessages = findViewById(R.id.tvMessages);
etMessage = findViewById(R.id.etMessage);
btnSend = findViewById(R.id.btnSend);
Button btnConnect = findViewById(R.id.btnConnect);
btnConnect.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
tvMessages.setText("");
SERVER_IP = etIP.getText().toString().trim();
SERVER_PORT = Integer.parseInt(etPort.getText().toString().trim());
Thread1 = new Thread(new Thread1());
Thread1.start();
}
});
btnSend.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
String message = etMessage.getText().toString().trim();
if (!message.isEmpty()) {
new Thread(new Thread3(message)).start();
}
}
});
}
private PrintWriter output;
private BufferedReader input;
class Thread1 implements Runnable {
public void run() {
Socket socket;
try {
socket = new Socket(SERVER_IP, SERVER_PORT);
output = new PrintWriter(socket.getOutputStream());
input = new BufferedReader(new InputStreamReader(socket.getInputStream()));
runOnUiThread(new Runnable() {
@Override
public void run() {
tvMessages.setText("Connected\n");
}
});
new Thread(new Thread2()).start();
} catch (IOException e) {
e.printStackTrace();
}
}
}
class Thread2 implements Runnable {
@Override
public void run() {
while (true) {
try {
final String message = input.readLine();
if (message ! = null) {
runOnUiThread(new Runnable() {
@Override
public void run() {
tvMessages.append("server: " + message + "\n");
}
});
} else {
Thread1 = new Thread(new Thread1());
Thread1.start();
return;
}
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
class Thread3 implements Runnable {
private String message;
Thread3(String message) {
this.message = message;
}
@Override
public void run() {
output.write(message);
output.flush();
runOnUiThread(new Runnable() {
@Override
public void run() {
tvMessages.append("client: " + message + "\n");
etMessage.setText("");
}
});
}
}
} 4단계 − androidManifest.xml에 다음 코드 추가
<?xml version = "1.0" encoding = "utf-8"?> <manifest xmlns:android = "https://schemas.android.com/apk/res/android" package = "com.client.myapplication.client"> <uses-permission android:name = "android.permission.INTERNET" /> <uses-permission android:name = "android.permission.ACCESS_NETWORK_STATE" /> <application android:allowBackup = "true" android:icon = "@mipmap/ic_launcher" android:label = "@string/app_name" android:roundIcon = "@mipmap/ic_launcher_round" android:supportsRtl = "true" android:theme = "@style/AppTheme"> <activity android:name = "com.client.myapplication.client.MainActivity" android:label = "Client"> <intent-filter> <action android:name = "android.intent.action.MAIN" /> <category android:name = "android.intent.category.LAUNCHER" /> </intent-filter> </activity> </application> </manifest>
서버와 클라이언트 응용 프로그램을 모두 실행해 보겠습니다. 실제 Android 모바일 장치를 컴퓨터에 연결했다고 가정합니다. Android 스튜디오에서 앱을 실행하려면 프로젝트의 활동 파일 중 하나를 열고 실행을 클릭하세요. 툴바에서
아이콘. 모바일 장치를 옵션으로 선택한 다음 기본 화면을 표시할 모바일 장치를 확인하십시오 –

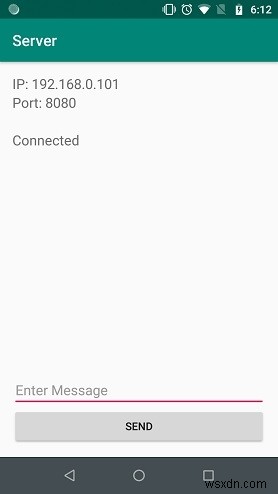

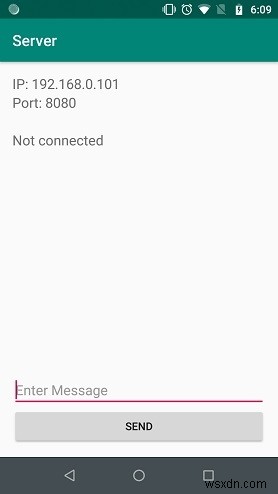

서버:-

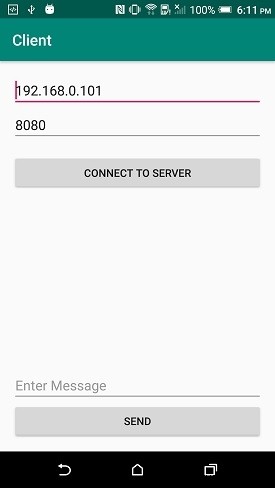

고객:-
서버:-
