안드로이드에서 RecyclerView로 가로(수평) 스크롤 ListView 만드는 방법

RecyclerView란?

본격적인 예제에 앞서 안드로이드의 리사이클러뷰(RecyclerView)가 무엇인지 먼저 살펴보겠습니다. 리사이클러뷰는 기존 리스트뷰(ListView)를 개선한 고급 위젯으로, 뷰 홀더(ViewHolder) 디자인 패턴을 기반으로 동작합니다. 리사이클러뷰를 활용하면 그리드 형태와 목록 형태의 아이템을 모두 효율적으로 표시할 수 있습니다.

이 글에서는 학생 이름과 나이를 카드 형태로 보여주는 학생 명부 앱을 직접 만들어 보면서, 리사이클러뷰로 가로 스크롤 리스트뷰를 구현하는 방법을 단계별로 알아보겠습니다.

1단계 — 새 프로젝트 생성

안드로이드 스튜디오에서 File → New Project를 선택한 뒤, 필요한 정보를 모두 입력하여 새 프로젝트를 생성합니다.

2단계 — build.gradle에 라이브러리 의존성 추가

build.gradle 파일을 열고 리사이클러뷰(RecyclerView)와 카드뷰(CardView) 라이브러리 의존성을 추가합니다.

apply plugin: 'com.android.application'
android {
    compileSdkVersion 28
    defaultConfig {
        applicationId "com.example.andy.tutorialspoint"
        minSdkVersion 19
        targetSdkVersion 28
        versionCode 1
        versionName "1.0"
        testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"
    }
    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }
}
dependencies {
    implementation fileTree(dir: 'libs', include: ['*.jar'])
    implementation 'com.android.support:appcompat-v7:28.0.0'
    implementation 'com.android.support:design:28.0.0'
    implementation 'com.android.support.constraint:constraint-layout:1.1.3'
    implementation 'com.android.support:cardview-v7:28.0.0'
    implementation 'com.android.support:recyclerview-v7:28.0.0'
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'com.android.support.test:runner:1.0.2'
    androidTestImplementation 'com.android.support.test.espresso:espresso-core:3.0.2'
}

3단계 — activity_main.xml 작성

res/layout/activity_main.xml 파일에 다음 코드를 추가합니다.

<?xml version = "1.0" encoding = "utf-8"?>
<RelativeLayout
    xmlns:android = "https://schemas.android.com/apk/res/android"
    xmlns:tools = "https://schemas.android.com/tools"
    xmlns:app = "https://schemas.android.com/apk/res-auto"
    android:layout_width = "match_parent"
    android:layout_height = "match_parent"
    app:layout_behavior = "@string/appbar_scrolling_view_behavior"
    tools:showIn = "@layout/activity_main"
    tools:context = ".MainActivity">
    <android.support.v7.widget.RecyclerView
        android:id = "@+id/recycler_view"
        android:layout_width = "match_parent"
        android:layout_height = "wrap_content"
        android:scrollbars = "horizontal" />
</RelativeLayout>

위 코드는 상위 레이아웃인 RelativeLayout 안에 리사이클러뷰를 배치하고, horizontal 스크롤바를 지정해 가로 방향 스크롤이 가능하도록 구성했습니다.

4단계 — MainActivity.java 작성

src/MainActivity.java 파일에 다음 코드를 추가합니다.

package com.example.andy.tutorialspoint;

import android.annotation.TargetApi;
import android.os.Build;
import android.os.Bundle;
import android.support.annotation.RequiresApi;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.DividerItemDecoration;
import android.support.v7.widget.GridLayoutManager;
import android.support.v7.widget.LinearLayoutManager;
import android.support.v7.widget.RecyclerView;
import android.view.View;
import android.widget.Button;
import android.widget.LinearLayout;
import android.widget.Toast;
import java.util.ArrayList;
import java.util.Collections;
import java.util.Comparator;
import java.util.List;


public class MainActivity extends AppCompatActivity {
    private RecyclerView recyclerView;
    private StudentAdapter studentAdapter;
    private List studentDataList = new ArrayList<>();
    @TargetApi(Build.VERSION_CODES.O)
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        recyclerView = findViewById(R.id.recycler_view);
        studentAdapter = new StudentAdapter(studentDataList,MainActivity.this);
        RecyclerView.LayoutManager manager = new LinearLayoutManager(this,LinearLayoutManager.HORIZONTAL, false);
        recyclerView.setLayoutManager(manager);
        recyclerView.setAdapter(studentAdapter);
        StudentDataPrepare();
    }
    @RequiresApi(api = Build.VERSION_CODES.N)
    private void StudentDataPrepare() {
        studentData data = new studentData("sai", 25);
        studentDataList.add(data);
        data = new studentData("sai raj", 25);
        studentDataList.add(data);
        data = new studentData("raghu", 20);
        studentDataList.add(data);
        data = new studentData("raj", 28);
        studentDataList.add(data);
        data = new studentData("amar", 15);
        studentDataList.add(data);
        data = new studentData("bapu", 19);
        studentDataList.add(data);
        data = new studentData("chandra", 52);
        studentDataList.add(data);
        data = new studentData("deraj", 30);
        studentDataList.add(data);
        data = new studentData("eshanth", 28);
        studentDataList.add(data);
        Collections.sort(studentDataList, new Comparator() {
            @Override
            public int compare(studentData o1, studentData o2) {
                return o1.name.compareTo(o2.name);
            }
        });
    }
}

위 코드에서는 리사이클러뷰에 학생 어댑터(StudentAdapter)를 연결했습니다. 어댑터에는 학생 이름과 나이가 담긴 studentDataList(ArrayList)를 전달합니다.

가로 방향 뷰를 구현하려면 아래와 같이 레이아웃 매니저를 설정해야 합니다.

RecyclerView.LayoutManager manager = new LinearLayoutManager(this,LinearLayoutManager.HORIZONTAL, false);
recyclerView.setLayoutManager(manager);

LinearLayoutManager의 스크롤 방향을 HORIZONTAL로 지정했기 때문에 리스트가 가로 방향으로 스크롤됩니다.

5단계 — StudentAdapter.java 작성

src/StudentAdapter.java 파일의 내용입니다.

package com.example.andy.tutorialspoint;

import android.graphics.Color;
import android.support.annotation.NonNull;
import android.support.v7.widget.RecyclerView;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.LinearLayout;
import android.widget.TextView;

import java.util.List;
import java.util.Random;

class StudentAdapter extends RecyclerView.Adapter {
    List<studentData> studentDataList;
    public StudentAdapter(List studentDataList) {
        this.studentDataList = studentDataList;
    }
    @NonNull
    @Override
    public MyViewHolder onCreateViewHolder(@NonNull ViewGroup viewGroup, int i) {
        View itemView = LayoutInflater.from(viewGroup.getContext())
        .inflate(R.layout.student_list_row, viewGroup, false);
        return new MyViewHolder(itemView);
    }
    @Override
    public void onBindViewHolder(MyViewHolder viewHolder, int i) {
        studentData data = studentDataList.get(i);
        Random rnd = new Random();
        int currentColor = Color.argb(255, rnd.nextInt(256), rnd.nextInt(256), rnd.nextInt(256));
        viewHolder.parent.setBackgroundColor(currentColor);
        viewHolder.name.setText(data.name);
        viewHolder.age.setText(String.valueOf(data.age));
    }
    @Override
    public int getItemCount() {
        return studentDataList.size();
    }
    class MyViewHolder extends RecyclerView.ViewHolder {
        TextView name,age;
        LinearLayout parent;
        public MyViewHolder(View itemView) {
            super(itemView);
            parent = itemView.findViewById(R.id.parent);
            name = itemView.findViewById(R.id.name);
            age = itemView.findViewById(R.id.age);
        }
    }
}

어댑터 클래스는 다음 네 가지 요소로 구성됩니다.

  • onCreateViewHolder(): 뷰 홀더를 생성하고 해당 뷰를 반환합니다.

  • onBindViewHolder(): 생성된 뷰 홀더에 데이터를 바인딩합니다.

  • getItemCount(): 리스트의 크기를 반환합니다.

  • MyViewHolder 클래스: RecyclerView.ViewHolder를 상속하는 내부 뷰 홀더 클래스입니다.

리사이클러뷰 아이템마다 배경색을 랜덤하게 지정하기 위해 안드로이드에 미리 정의된 Random 클래스로 임의 색상을 생성하고, 아래와 같이 아이템 뷰의 부모 레이아웃에 적용했습니다.

Random rnd = new Random();
int currentColor = Color.argb(255, rnd.nextInt(256), rnd.nextInt(256), rnd.nextInt(256));
viewHolder.parent.setBackgroundColor(currentColor);

6단계 — student_list_row.xml 작성

res/layout/student_list_row.xml 파일의 내용입니다.

<?xml version = "1.0" encoding = "utf-8"?>
<android.support.v7.widget.CardView xmlns:android = "https://schemas.android.com/apk/res/android"
    xmlns:card_view = "https://schemas.android.com/apk/res-auto"
    android:layout_width = "match_parent"
    card_view:cardCornerRadius = "4dp"
    android:id = "@+id/card_view"
    android:layout_margin = "10dp"
    android:layout_height = "200dp">
    <LinearLayout
        android:id = "@+id/parent"
        android:layout_gravity = "center"
        android:layout_width = "match_parent"
        android:orientation = "vertical"
        android:gravity = "center"
        android:layout_height = "match_parent">
        <TextView
            android:id = "@+id/name"
            android:layout_width = "wrap_content"
            android:gravity = "center"
            android:textSize = "25sp"
            android:textColor = "#FFF"
            android:layout_height = "wrap_content" />
        <TextView
            android:id = "@+id/age"
            android:layout_width = "wrap_content"
            android:gravity = "center"
            android:textSize = "25sp"
            android:textColor = "#FFF"
            android:layout_height = "wrap_content" />
    </LinearLayout>
</android.support.v7.widget.CardView>

위 리스트 아이템 뷰는 카드뷰(CardView) 안에 이름과 나이를 표시하는 두 개의 텍스트뷰를 담고 있습니다. 카드뷰는 모서리 둥글기(cornerRadius)와 그림자 속성을 기본적으로 제공하므로, 이 예제에서는 cardCornerRadius 속성을 활용했습니다.

7단계 — studentData.java 작성

src/studentData.java 파일의 내용입니다.

class studentData {
    String name;
    int age;
    public studentData(String name, int age) {
        this.name = name;
        this.age = age;
    }
}

위 코드는 학생 데이터 객체를 정의합니다. 이름(name)과 나이(age)를 필드로 가지는 단순한 모델 클래스입니다.

앱 실행하기

이제 애플리케이션을 실행해 보겠습니다. 실제 안드로이드 기기가 컴퓨터에 연결되어 있다고 가정합니다. 안드로이드 스튜디오에서 프로젝트의 액티비티 파일 중 하나를 연 뒤 툴바의 Run 아이콘을 클릭하고, 실행할 모바일 기기를 선택하면 기기 화면에 앱이 표시됩니다.

안드로이드에서 RecyclerView로 가로(수평) 스크롤 ListView 만드는 방법

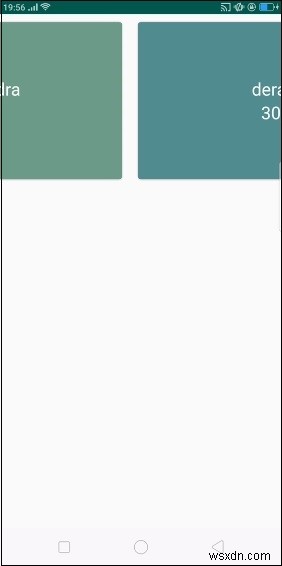

리사이클러뷰를 가로 방향으로 스크롤하면 아래와 같은 결과를 확인할 수 있습니다.

안드로이드에서 RecyclerView로 가로(수평) 스크롤 ListView 만드는 방법
