Bellman-Ford 알고리즘은 소스 정점에서 다른 정점까지의 최소 거리를 찾는 데 사용됩니다. 이 알고리즘과 Dijkstra 알고리즘의 주요 차이점은 Dijkstra 알고리즘에서는 음수 가중치를 처리할 수 없지만 여기서는 쉽게 처리할 수 있다는 것입니다.

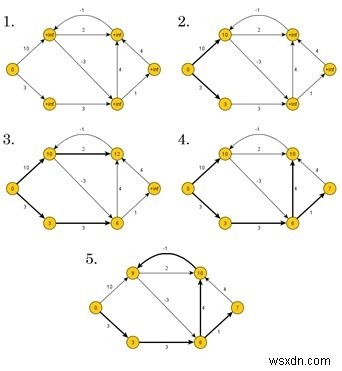

Bellman-Ford 알고리즘은 상향식 방식으로 거리를 찾습니다. 처음에는 경로에 가장자리가 하나만 있는 거리를 찾습니다. 그런 다음 가능한 모든 솔루션을 찾기 위해 경로 길이를 늘립니다.
입력 및 출력
Input: The cost matrix of the graph: 0 6 ∞ 7 ∞ ∞ 0 5 8 -4 ∞ -2 0 ∞ ∞ ∞ ∞ -3 0 9 2 ∞ 7 ∞ 0 Output: Source Vertex: 2 Vert: 0 1 2 3 4 Dist: -4 -2 0 3 -6 Pred: 4 2 -1 0 1 The graph has no negative edge cycle
알고리즘
bellmanFord(dist, pred, source)
입력 - 거리 목록, 선행자 목록 및 소스 정점.
출력 - 네거티브 사이클이 발견되면 사실입니다.
Begin iCount := 1 maxEdge := n * (n - 1) / 2 //n is number of vertices for all vertices v of the graph, do dist[v] := ∞ pred[v] := ϕ done dist[source] := 0 eCount := number of edges present in the graph create edge list named edgeList while iCount < n, do for i := 0 to eCount, do if dist[edgeList[i].v] > dist[edgeList[i].u] + (cost[u,v] for edge i) dist[edgeList[i].v] > dist[edgeList[i].u] + (cost[u,v] for edge i) pred[edgeList[i].v] := edgeList[i].u done done iCount := iCount + 1 for all vertices i in the graph, do if dist[edgeList[i].v] > dist[edgeList[i].u] + (cost[u,v] for edge i), then return true done return false End
예시
#include<iostream> #include<iomanip> #define V 5 #define INF 999 using namespace std; //Cost matrix of the graph (directed) vertex 5 int costMat[V][V] = { {0, 6, INF, 7, INF}, {INF, 0, 5, 8, -4}, {INF, -2, 0, INF, INF}, {INF, INF, -3, 0, 9}, {2, INF, 7, INF, 0} }; typedef struct { int u, v, cost; }edge; int isDiagraph() { //check the graph is directed graph or not int i, j; for(i = 0; i<V; i++) { for(j = 0; j<V; j++) { if(costMat[i][j] != costMat[j][i]) { return 1; //graph is directed } } } return 0;//graph is undirected } int makeEdgeList(edge *eList) { //create edgelist from the edges of graph int count = -1; if(isDiagraph()) { for(int i = 0; i<V; i++) { for(int j = 0; j<V; j++) { if(costMat[i][j] != 0 && costMat[i][j] != INF) { count++; //edge find when graph is directed eList[count].u = i; eList[count].v = j; eList[count].cost = costMat[i][j]; } } } }else { for(int i = 0; i<V; i++) { for(int j = 0; j<i; j++) { if(costMat[i][j] != INF) { count++; //edge find when graph is undirected eList[count].u = i; eList[count].v = j; eList[count].cost = costMat[i][j]; } } } } return count+1; } int bellmanFord(int *dist, int *pred,int src) { int icount = 1, ecount, max = V*(V-1)/2; edge edgeList[max]; for(int i = 0; i<V; i++) { dist[i] = INF; //initialize with infinity pred[i] = -1; //no predecessor found. } dist[src] = 0;//for starting vertex, distance is 0 ecount = makeEdgeList(edgeList); //edgeList formation while(icount < V) { //number of iteration is (Vertex - 1) for(int i = 0; i<ecount; i++) { if(dist[edgeList[i].v] > dist[edgeList[i].u] + costMat[edgeList[i].u][edgeList[i].v]) { //relax edge and set predecessor dist[edgeList[i].v] = dist[edgeList[i].u] + costMat[edgeList[i].u][edgeList[i].v]; pred[edgeList[i].v] = edgeList[i].u; } } icount++; } //test for negative cycle for(int i = 0; i<ecount; i++) { if(dist[edgeList[i].v] > dist[edgeList[i].u] + costMat[edgeList[i].u][edgeList[i].v]) { return 1; //indicates the graph has negative cycle } } return 0; //no negative cycle } void display(int *dist, int *pred) { cout << "Vert: "; for(int i = 0; i<V; i++) cout <<setw(3) << i << " "; cout << endl; cout << "Dist: "; for(int i = 0; i<V; i++) cout << setw(3) << dist[i] << " "; cout << endl; cout << "Pred: "; for(int i = 0; i<V; i++) cout << setw(3) << pred[i] << " "; cout << endl; } int main() { int dist[V], pred[V], source, report; source = 2; report = bellmanFord(dist, pred, source); cout << "Source Vertex: " << source<<endl; display(dist, pred); if(report) cout << "The graph has a negative edge cycle" << endl; else cout << "The graph has no negative edge cycle" << endl; }
출력
Source Vertex: 2 Vert: 0 1 2 3 4 Dist: -4 -2 0 3 -6 Pred: 4 2 -1 0 1 The graph has no negative edge cycle
