이 튜토리얼에서는 Tkinter 를 사용하여 간단한 GUI 계산기를 만들 것입니다. 기준 치수. 트킨터 GUI 응용 프로그램을 개발하기 위한 Python 모듈에 내장되어 있습니다. 사용하기 쉽고 Python과 함께 제공됩니다. GUI 애플리케이션으로 데이터를 시각화할 수 있습니다.
간단한 GUI 계산기를 만드는 방법을 살펴보겠습니다.
-
Tkinter 에서 모든 것을 가져옵니다. *.
사용 -
계산기 인터페이스를 만드십시오.
-
입력 필드에 숫자를 입력하는 입력 함수를 만듭니다.
-
입력 필드에서 모든 것을 지우는 명백한 함수를 만듭니다.
-
그리고 마지막으로 표현식의 결과를 계산하여 제공하는 함수를 평가합니다.
예시
# importing everyting from tkinter
from tkinter import *
# expression to access among all the functions
expression = ""
# functions
def input_number(number, equation):
# accessing the global expression variable
global expression
# concatenation of string
expression = expression + str(number)
equation.set(expression)
def clear_input_field(equation):
global expression
expression = ""
# setting empty string in the input field
equation.set("Enter the expression")
def evaluate(equation):
global expression
# trying to evaluate the expression
try:
result = str(eval(expression))
# showing the result in the input field
equation.set(result)
# setting expression to empty string
expression = ""
except:
# some error occured
# showing it to the user equation.set("Enter a valid expression")
expression = ""
# creating the GUI
def main():
# main window window = Tk()
# setting the title of GUI window
window.title("Calculator")
# set the configuration of GUI window
window.geometry("325x175")
# varible class instantiation
equation = StringVar()
# input field for the expression
input_field = Entry(window, textvariable=equation)
input_field.place(height=100)
# we are using grid position
# for the arrangement of the widgets
input_field.grid(columnspan=4, ipadx=100, ipady=5)
# settin the placeholder message for users
equation.set("Enter the expression")
# creating buttons and placing them at respective positions
_1 = Button(window, text='1', fg='white', bg='black', bd=0, command=lambda: input_number(1, equation), height=2, width=7)
_1.grid(row=2, column=0)
_2 = Button(window, text='2', fg='white', bg='black', bd=0, command=lambda: input_number(2, equation), height=2, width=7)
_2.grid(row=2, column=1)
_3 = Button(window, text='3', fg='white', bg='black', bd=0, command=lambda: input_number(3, equation), height=2, width=7)
_3.grid(row=2, column=2)
_4 = Button(window, text='4', fg='white', bg='black', bd=0, command=lambda: input_number(4, equation), height=2, width=7)
_4.grid(row=3, column=0)
_5 = Button(window, text='5', fg='white', bg='black', bd=0, command=lambda: input_number(5, equation), height=2, width=7)
_5.grid(row=3, column=1)
_6 = Button(window, text='6', fg='white', bg='black', bd=0, command=lambda: input_number(6, equation), height=2, width=7)
_6.grid(row=3, column=2)
_7 = Button(window, text='7', fg='white', bg='black', bd=0, command=lambda: input_number(7, equation), height=2, width=7)
_7.grid(row=4, column=0)
_8 = Button(window, text='8', fg='white', bg='black', bd=0, command=lambda: input_number(8, equation), height=2, width=7)
_8.grid(row=4, column=1)
_9 = Button(window, text='9', fg='white', bg='black', bd=0, command=lambda: input_number(9, equation), height=2, width=7)
_9.grid(row=4, column=2)
_0 = Button(window, text='0', fg='white', bg='black', bd=0, command=lambda: input_number(0, equation), height=2, width=7)
_0.grid(row=5, column=0)
plus = Button(window, text='+', fg='white', bg='black', bd=0, command=lambda: input_number('+', equation), height=2, width=7)
plus.grid(row=2, column=3)
minus = Button(window, text='-', fg='white', bg='black', bd=0, command=lambda: input_number('-', equation), height=2, width=7)
minus.grid(row=3, column=3)
multiply = Button(window, text='*', fg='white', bg='black', bd=0, command=lambda: input_number('*', equation), height=2, width=7)
multiply.grid(row=4, column=3)
divide = Button(window, text='/', fg='white', bg='black', bd=0, command=lambda: input_number('/', equation), height=2, width=7)
divide.grid(row=5, column=3)
equal = Button(window, text='=', fg='white', bg='black', bd=0, command=lambda: evaluate(equation), height=2, width=7)
equal.grid(row=5, column=2)
clear = Button(window, text='Clear', fg='white', bg='black', bd=0, command=lambda: clear_input_field(equation), height=2, width=7)
clear.grid(row=5, column=1)
# showing the GUI
window.mainloop()
# start of the program
if __name__ == '__main__':
main()
출력

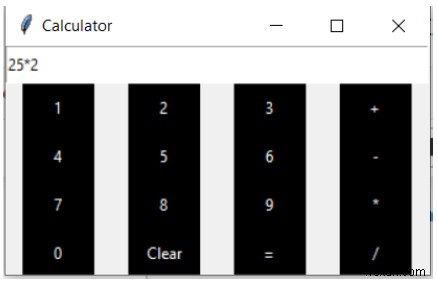

위의 프로그램을 실행하면 아래와 같은 간단한 계산기가 나옵니다.

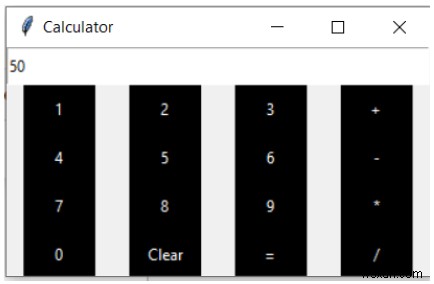

=버튼을 누른 후 생성된 위 식의 결과입니다.
결론
튜토리얼에서 의문점이 있으면 댓글 섹션에 언급하세요.
