OpenCV에서 실시간으로 얼굴을 추적하는 방법을 배웁니다. 이 프로그램은 이전 프로그램과 동일하며 차이점은 직사각형 대신 타원을 사용하여 얼굴을 식별하고 추가 'cout' 문을 사용하여 콘솔 창에 얼굴의 좌표를 표시한다는 점입니다.
실시간으로 사람의 얼굴을 감지하는 다음 프로그램 −
예시
#include<iostream> #include<opencv2/highgui/highgui.hpp> #include<opencv2/imgproc/imgproc.hpp> //This header includes definition of 'rectangle()' function// #include<opencv2/objdetect/objdetect.hpp> //This header includes the definition of Cascade Classifier// #include<string> using namespace std; using namespace cv; int main(int argc, char** argv) { Mat video_stream;//Declaring a matrix hold frames from video stream// VideoCapture real_time(0);//capturing video from default webcam namedWindow("Face Detection");//Declaring an window to show the result// string trained_classifier_location = "C:/opencv/sources/data/haarcascades/haarcascade_frontalface_alt.xml";//Defining the location our XML Trained Classifier in a string// CascadeClassifier faceDetector;//Declaring an object named 'face detector' of CascadeClassifier class// faceDetector.load(trained_classifier_location);//loading the XML trained classifier in the object// vector<Rect>faces;//Declaring a rectangular vector named faces// while (true) { faceDetector.detectMultiScale(video_stream, faces, 1.1, 4, CASCADE_SCALE_IMAGE, Size(30, 30));//Detecting the faces in 'image_with_humanfaces' matrix// real_time.read(video_stream);// reading frames from camera and loading them in 'video_stream' Matrix// for (int i = 0; i < faces.size(); i++){ //for locating the face Point center(faces[i].x + faces[i].width * 0.5, faces[i].y + faces[i].height * 0.5);//getting the center of the face// ellipse(video_stream, center,Size(faces[i].width * 0.5, faces[i].height * 0.5), 0, 0, 360, Scalar(255, 0, 255), 4, 8, 0);//draw an ellipse on the face// int horizontal = (faces[i].x + faces[i].width * 0.5);//Getting the horizontal value of coordinate// int vertical=(faces[i].y + faces[i].width * 0.5);//Getting the vertical value of coordinate// cout << "Position of the face is:" << "(" << horizontal << "," << vertical << ")" << endl; //Showing position in the console window// } imshow("Face Detection", video_stream); //Showing the detected face// if (waitKey(10) == 27){ //wait time for each frame is 10 milliseconds// break; } } return 0; }

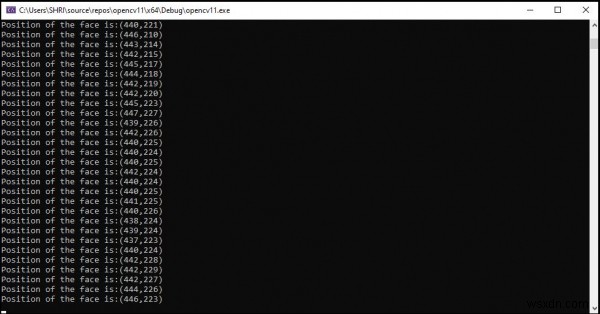

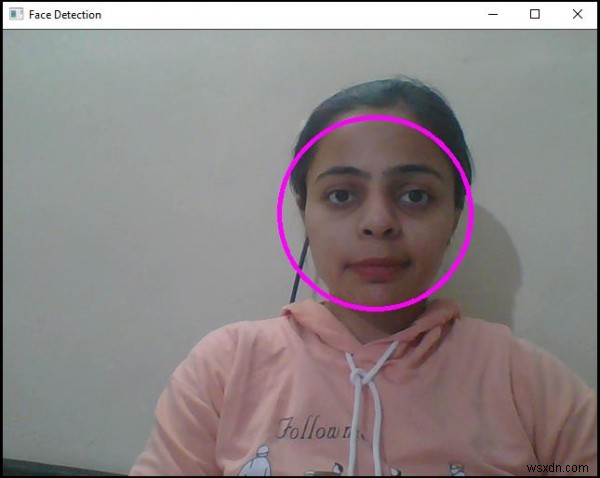

출력
