Android에서 뷰를 동적으로 추가하고 제거하는 방법

이 튜토리얼에서는 Android 앱에서 뷰(View)를 동적으로 추가하고 제거하는 방법을 단계별로 살펴봅니다. 사용자가 전화번호 목록처럼 반복되는 입력 필드를 필요할 때마다 자유롭게 늘리거나 줄일 수 있는 UI를 만들 때 이 기법이 유용하게 활용됩니다.

1단계 — 새 프로젝트 생성

Android Studio에서 File ⇒ New Project를 선택해 새 프로젝트를 만들고, 프로젝트 생성에 필요한 모든 정보를 입력합니다.

2단계 — res/layout/activity_main.xml 작성

메인 화면 레이아웃 파일에 아래 코드를 추가합니다. 상위 LinearLayout 안에는 초기 입력 행(EditText + Spinner + 삭제 버튼)과 '필드 추가' 버튼이 배치됩니다.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
   xmlns:android="https://schemas.android.com/apk/res/android"
   xmlns:tools="https://schemas.android.com/tools"
   xmlns:app="https://schemas.android.com/apk/res-auto"
   android:id="@+id/parent_linear_layout"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   tools:context=".MainActivity"
   android:layout_margin="5dp"
   android:orientation="vertical">
   <LinearLayout xmlns:android="https://schemas.android.com/apk/res/android"
      android:layout_width="match_parent"
      android:layout_height="50dp"
      android:orientation="horizontal" >
      <EditText
         android:id="@+id/number_edit_text"
         android:layout_width="0dp"
         android:layout_height="match_parent"
         android:layout_weight="5"
         android:inputType="phone"/>
      <Spinner
         android:id="@+id/type_spinner"
         android:layout_width="0dp"
         android:layout_height="wrap_content"
         android:layout_weight="3"
         android:entries="@array/types"
         android:gravity="right" />
      <Button
         android:id="@+id/delete_button"
         android:layout_width="0dp"
         android:layout_height="40dp"
         android:layout_weight="1"
         android:background="@android:drawable/ic_delete"
         android:onClick="onDelete"/>
   </LinearLayout>
   <Button
      android:id="@+id/add_field_button"
      android:layout_width="100dp"
      android:layout_height="wrap_content"
      android:layout_marginBottom="5dp"
      android:layout_marginLeft="5dp"
      android:layout_marginRight="5dp"
      android:background="#555"
      android:layout_gravity="center"
      android:onClick="onAddField"
      android:textColor="#FFF"
      android:text="Add Field"
      android:paddingLeft="5dp"/>
</LinearLayout>

3단계 — res/layout/field.xml 작성

동적으로 추가할 개별 행(row)의 레이아웃 파일입니다. 메인 레이아웃의 첫 번째 행과 동일한 구조로 구성되어 있습니다.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
   xmlns:android="https://schemas.android.com/apk/res/android"
   android:layout_width="match_parent"
   android:layout_height="50dp"
   android:orientation="horizontal">
   <EditText
      android:id="@+id/number_edit_text"
      android:layout_width="0dp"
      android:layout_height="match_parent"
      android:layout_weight="5"
      android:inputType="phone"/>
   <Spinner
      android:id="@+id/type_spinner"
      android:layout_width="0dp"
      android:layout_height="wrap_content"
      android:layout_weight="3"
      android:entries="@array/types"
      android:gravity="right" />
   <Button
      android:id="@+id/delete_button"
      android:layout_width="0dp"
      android:layout_height="40dp"
      android:layout_weight="1"
      android:background="@android:drawable/ic_delete"
      android:onClick="onDelete"/>
</LinearLayout>

4단계 — res/values/strings.xml 작성

Spinner에서 사용할 항목 배열(휴대폰/회사/집)과 앱 이름을 정의합니다.

<resources>
   <string name="app_name">Sample</string>
   <string-array name="types">
      <item>Mobile</item>
      <item>Office</item>
      <item>Home</item>
   </string-array>
</resources>

5단계 — res/values/styles.xml 작성

애플리케이션의 기본 테마와 색상 속성을 설정합니다.

<resources>
   <!-- Base application theme. -->
   <style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
      <!-- Customize your theme here. -->
      <item name="colorPrimary">@color/colorPrimary</item>
      <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
      <item name="colorAccent">@color/colorAccent</item>
      <item name="actionBarSize">36dip</item>
   </style>
</resources>

6단계 — src/MainActivity.java 작성

핵심 로직은 크게 두 부분으로 나뉩니다. onAddField() 메서드는 LayoutInflater를 이용해 field.xml 레이아웃을 인플레이트한 뒤, '필드 추가' 버튼 바로 앞 위치에 새 행을 삽입합니다. onDelete() 메서드는 클릭된 버튼의 부모 뷰(즉, 해당 행 전체)를 상위 LinearLayout에서 제거합니다.

package com.example.sample;
import android.content.Context;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.LayoutInflater;
import android.view.View;
import android.widget.LinearLayout;
public class MainActivity extends AppCompatActivity {
   private LinearLayout parentLinearLayout;
   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
      parentLinearLayout=(LinearLayout) findViewById(R.id.parent_linear_layout);
   }
   public void onAddField(View v) {
      LayoutInflater inflater=(LayoutInflater) getSystemService(Context.LAYOUT_INFLATER_SERVICE);
      final View rowView=inflater.inflate(R.layout.field, null);
      // 새 행을 '필드 추가' 버튼 앞에 추가합니다.
      parentLinearLayout.addView(rowView, parentLinearLayout.getChildCount() - 1);
   }
   public void onDelete(View v) {
      parentLinearLayout.removeView((View) v.getParent());
   }
}

참고: 최신 Android Studio 프로젝트(AndroidX 적용 환경)에서는 import android.support.v7.app.AppCompatActivity; 대신 import androidx.appcompat.app.AppCompatActivity;를 사용해야 합니다.

7단계 — manifests/AndroidManifest.xml 작성

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="https://schemas.android.com/apk/res/android" package="com.example.sample">
   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:roundIcon="@mipmap/ic_launcher_round"
      android:supportsRtl="true"
      android:theme="@style/AppTheme">
      <activity android:name=".MainActivity">
         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
          </intent-filter>
      </activity>
   </application>
</manifest>

앱 실행하기

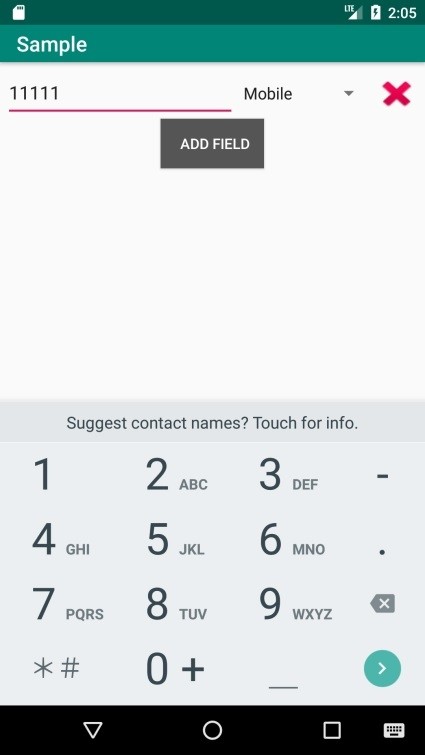

이제 애플리케이션을 실행해 보겠습니다. 실제 Android 스마트폰이 컴퓨터에 연결되어 있다고 가정합니다. Android Studio에서 프로젝트의 액티비티 파일 중 하나를 연 뒤, 도구 모음의 Run 아이콘을 클릭하세요. 실행 옵션에서 자신의 모바일 기기를 선택하면, 기기 화면에 다음과 같은 기본 화면이 표시됩니다.

Android에서 뷰를 동적으로 추가하고 제거하는 방법

Android에서 뷰를 동적으로 추가하고 제거하는 방법

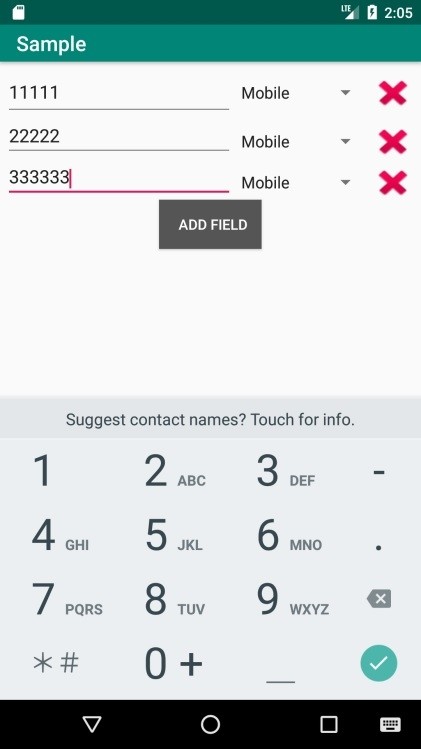

'Add Field' 버튼을 누를 때마다 새로운 입력 행이 추가되고, 각 행의 삭제 버튼을 누르면 해당 행이 즉시 사라지는 것을 확인할 수 있습니다. 이 방식은 연락처 등록, 주문 항목 입력 등 사용자가 항목 수를 직접 조절해야 하는 다양한 화면에 응용할 수 있습니다.
