Doxygen은 주석이 달린 C++ 소스에서 문서를 생성하기 위한 사실상의 일반 도구이지만 C, Objective-C, C#, Hypertext Preprocessor, Java, Python, IDL(Corba, Microsoft 및 UNO/ OpenOffice 풍미), Fortran, VHDL 및 Tcl. 이 문서에서는 "Ubuntu에 Doxygen을 설치하는 방법"
에 대해 설명합니다.Doxygen을 설치하려면 다음 명령을 사용하십시오. –
$ sudo apt-get install doxygen
샘플 출력은 다음과 같아야 합니다. –
Reading package lists... Done Building dependency tree Reading state information... Done The following packages were automatically installed and are no longer required: libterm-readkey-perl linux-headers-4.4.0-31 linux-headers-4.4.0-31-generic linux-image-4.4.0-31-generic linux-image-extra-4.4.0-31-generic linux-signed-image-4.4.0-31-generic Use 'sudo apt autoremove' to remove them. The following additional packages will be installed: libclang1-3.6 libllvm3.6v5 libobjc-5-dev libobjc4 Suggested packages: doxygen-latex doxygen-doc doxygen-gui graphviz The following NEW packages will be installed: doxygen libclang1-3.6 libllvm3.6v5 libobjc-5-dev libobjc4 0 upgraded, 5 newly installed, 0 to remove and 26 not upgraded. Need to get 15.9 MB of archives. After this operation, 64.0 MB of additional disk space will be used. Do you want to continue? [Y/n] y Get:1 https://in.archive.ubuntu.com/ubuntu xenial/main amd64 libllvm3.6v5 amd64 1:3.6.2-3ubuntu2 [8,075 kB] Get:2 https://in.archive.ubuntu.com/ubuntu xenial-updates/main amd64 libobjc4 amd64 5.4.0-6ubuntu1~16.04.4 [111 kB] Get:3 https://in.archive.ubuntu.com/ubuntu xenial-updates/main amd64 libobjc-5-dev amd64 5.4.0-6ubuntu1~16.04.4 [380 kB] Get:4 https://in.archive.ubuntu.com/ubuntu xenial/main amd64 libclang1-3.6 amd64 1:3.6.2-3ubuntu2 [3,696 kB] Get:5 https://in.archive.ubuntu.com/ubuntu xenial/main amd64 doxygen amd64 1.8.11-1 [3,679 kB] .........................................................................................
Doxygen에 대한 자세한 정보를 얻으려면 다음 명령을 사용하십시오. –
$ doxygen --help
샘플 출력은 다음과 같아야 합니다-
Doxygen version 1.8.11 Copyright Dimitri van Heesch 1997-2015 You can use doxygen in a number of ways: 1) Use doxygen to generate a template configuration file: doxygen [-s] -g [configName] If - is used for configName doxygen will write to standard output. 2) Use doxygen to update an old configuration file: doxygen [-s] -u [configName] 3) Use doxygen to generate documentation using an existing configuration file: doxygen [configName] If - is used for configName doxygen will read from standard input. 4) Use doxygen to generate a template file controlling the layout of the generated documentation: doxygen -l [layoutFileName.xml] 5) Use doxygen to generate a template style sheet file for RTF, HTML or Latex. RTF: doxygen -w rtf styleSheetFile HTML: doxygen -w html headerFile footerFile styleSheetFile [configFile] LaTeX: doxygen -w latex headerFile footerFile styleSheetFile [configFile] 6) Use doxygen to generate a rtf extensions file RTF: doxygen -e rtf extensionsFile ........................................................................
소스 코드의 문서를 생성하려면 다음 코드를 사용하십시오-
$ doxygen -g sample_text.conf
위의 명령에서 sample_text.conf라는 파일이 생성되었습니다. 아래에 표시된 대로 다음 코드가 포함되어 있습니다. –
# Doxyfile 1.8.11 # This file describes the settings to be used by the documentation system # doxygen (www.doxygen.org) for a project. # # All text after a double hash (##) is considered a comment and is placed in # front of the TAG it is preceding. # # All text after a single hash (#) is considered a comment and will be ignored. # The format is: # TAG = value [value, ...] # For lists, items can also be appended using: # TAG += value [value, ...] # Values that contain spaces should be placed between quotes (\" \"). #--------------------------------------------------------------------------- # Project related configuration options #--------------------------------------------------------------------------- ..................................................................................
문서를 생성하려면 다음 명령을 사용하십시오. –
$ doxygen sample_text.conf
샘플 출력은 다음과 같아야 합니다. –
Searching for include files... Searching for example files... Searching for images... Searching for dot files... Searching for msc files... Searching for dia files... Searching for files to exclude Searching INPUT for files to process... Searching for files in directory /home/linux warning: source /home/linux/.dbus is not a readable file or directory... skipping. Reading and parsing tag files Parsing files Preprocessing /home/linux/abc.txt... Parsing file /home/linux/abc.txt... Preprocessing /home/linux/bbc.txt... Parsing file /home/linux/bbc.txt... Building group list... Building directory list... Building namespace list... Building file list... Building class list... Associating documentation with classes... Computing nesting relations for classes... Building example list... Searching for enumerations... Searching for documented typedefs... Searching for members imported via using declarations... Searching for included using directives... Searching for documented variables... Building interface member list... ................................................................

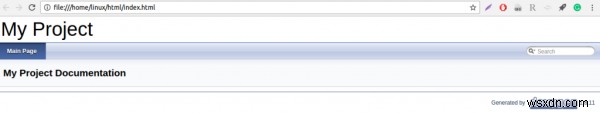

HTML 형식의 문서를 탐색하려면 다음 명령을 사용하십시오. –
$ cd html /html$ google-chrome index.html
샘플 출력은 다음과 같아야 합니다. –
이 기사가 끝나면 Ubuntu에 Doxygen을 설치하는 방법을 이해할 수 있습니다. 다음 기사에서는 더 많은 Linux 기반 트릭과 팁을 제공할 것입니다. 계속 읽어주세요!
