C++의 스도쿠 솔버

<시간/>

스도쿠 그리드가 있고 이 유명한 숫자 미로 문제인 스도쿠를 풀어야 한다고 가정합니다. 우리는 스도쿠가 9 x 9 숫자 그리드이고 전체 그리드도 3 x 3 상자로 분할된다는 것을 알고 있습니다. 스도쿠를 푸는 몇 가지 규칙이 있습니다.

  • 이 문제를 해결하려면 1에서 9까지의 숫자를 사용해야 합니다.

  • 하나의 행, 하나의 열 또는 하나의 3 x 3 상자에서 하나의 숫자를 반복할 수 없습니다.

역추적 알고리즘을 사용하여 스도쿠 문제를 해결하려고 합니다. 일부 셀이 숫자로 채워지면 유효한지 여부를 확인합니다. 유효하지 않은 경우 다른 번호를 확인합니다. 1-9 사이의 모든 숫자를 확인하고 유효한 숫자를 찾지 못하면 이전 옵션으로 되돌아갑니다.

따라서 입력이 다음과 같으면 -

C++의 스도쿠 솔버

출력은 -

C++의 스도쿠 솔버

이 문제를 해결하기 위해 다음 단계를 따릅니다. −

  • isPresentInCol()이라는 메서드를 정의합니다. 이 메서드는 호출과 num

    을 받습니다.
  • 그리드의 각 행 r에 대해

    • grid[r, col] =num이면 true를 반환합니다.

  • 그렇지 않으면 false를 반환

  • isPresentInRow()라는 메서드를 정의하면 행과 숫자가 필요합니다.

  • 그리드의 각 열 c에 대해

    • grid[row, c] =num이면 true를 반환합니다.

  • 그렇지 않으면 false를 반환

  • isPresentInBox()라는 메서드를 정의하면 boxStartRow, boxStartCol, num

    이 사용됩니다.
  • boxStartRow의 각 행 r에 대해 다음 3행까지

    • 다음 3개의 열에 대한 boxStartCol의 각 열에 대해 수행

      • grid[r, c] =num이면 true를 반환합니다.

  • 그렇지 않으면 false를 반환

  • findEmptyPlace()라는 메서드를 정의하면 행과 열이 필요합니다.

  • 그리드의 각 행 r에 대해

    • 그리드의 각 열 c에 대해

      • grid[r, c] =0이면 true를 반환합니다.

  • 거짓 반환

  • isValidPlace()라는 메서드를 정의하면 행, 열, 번호

    가 사용됩니다.
  • isPresentInRow(row, num) 및 isPresentInCol(col, num) 및 isPresntInBox(row – row mod 3, col – col mod 3, num)가 모두 false이면 true를 반환합니다.

  • solveSudoku()라는 메서드를 정의하면 그리드가 필요합니다.

  • 그리드에 빈 자리가 없으면 true를 반환합니다.

  • 숫자 1에서 9에 대해 수행

    • isValidPlace(행, 열, 숫자)인 경우

      • 그리드[행, 열] :=숫자

      • solveSudoku =true이면 true를 반환합니다.

      • 그리드[행, 열] :=0

  • 거짓 반환

예시(C++)

더 나은 이해를 위해 다음 구현을 살펴보겠습니다. −

#include <iostream>
#define N 9
using namespace std;
int grid[N][N] = {
   {3, 0, 6, 5, 0, 8, 4, 0, 0},
   {5, 2, 0, 0, 0, 0, 0, 0, 0},
   {0, 8, 7, 0, 0, 0, 0, 3, 1},
   {0, 0, 3, 0, 1, 0, 0, 8, 0},
   {9, 0, 0, 8, 6, 3, 0, 0, 5},
   {0, 5, 0, 0, 9, 0, 6, 0, 0},
   {1, 3, 0, 0, 0, 0, 2, 5, 0},
   {0, 0, 0, 0, 0, 0, 0, 7, 4},
   {0, 0, 5, 2, 0, 6, 3, 0, 0}
};
bool isPresentInCol(int col, int num){ //check whether num is present in col or not
   for (int row = 0; row < N; row++)
      if (grid[row][col] == num)
         return true;
   return false;
}
bool isPresentInRow(int row, int num){ //check whether num is present in row or not
   for (int col = 0; col < N; col++)
      if (grid[row][col] == num)
         return true;
   return false;
}
bool isPresentInBox(int boxStartRow, int boxStartCol, int num){
//check whether num is present in 3x3 box or not
   for (int row = 0; row < 3; row++)
      for (int col = 0; col < 3; col++)
         if (grid[row+boxStartRow][col+boxStartCol] == num)
            return true;
   return false;
}
void sudokuGrid(){ //print the sudoku grid after solve
   for (int row = 0; row < N; row++){
      for (int col = 0; col < N; col++){
         if(col == 3 || col == 6)
            cout << " | ";
         cout << grid[row][col] <<" ";
      }
      if(row == 2 || row == 5){
         cout << endl;
         for(int i = 0; i<N; i++)
            cout << "---";
      }
      cout << endl;
   }
}
bool findEmptyPlace(int &row, int &col){ //get empty location and update row and column
   for (row = 0; row < N; row++)
      for (col = 0; col < N; col++)
         if (grid[row][col] == 0) //marked with 0 is empty
            return true;
   return false;
}
bool isValidPlace(int row, int col, int num){
   //when item not found in col, row and current 3x3 box
   return !isPresentInRow(row, num) && !isPresentInCol(col, num) && !isPresentInBox(row - row%3 ,
col - col%3, num);
}
bool solveSudoku(){
   int row, col;
   if (!findEmptyPlace(row, col))
      return true; //when all places are filled
   for (int num = 1; num <= 9; num++){ //valid numbers are 1 - 9
      if (isValidPlace(row, col, num)){ //check validation, if yes, put the number in the grid
         grid[row][col] = num;
         if (solveSudoku()) //recursively go for other rooms in the grid
            return true;
         grid[row][col] = 0; //turn to unassigned space when conditions are not satisfied
      }
   }
   return false;
}
int main(){
   if (solveSudoku() == true)
      sudokuGrid();
   else
      cout << "No solution exists";
}

입력

{3, 0, 6, 5, 0, 8, 4, 0, 0},
{5, 2, 0, 0, 0, 0, 0, 0, 0},
{0, 8, 7, 0, 0, 0, 0, 3, 1},
{0, 0, 3, 0, 1, 0, 0, 8, 0},
{9, 0, 0, 8, 6, 3, 0, 0, 5},
{0, 5, 0, 0, 9, 0, 6, 0, 0},
{1, 3, 0, 0, 0, 0, 2, 5, 0},
{0, 0, 0, 0, 0, 0, 0, 7, 4},
{0, 0, 5, 2, 0, 6, 3, 0, 0}

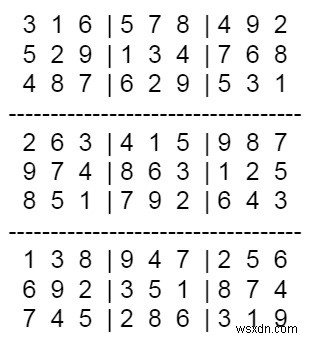

출력

3 1 6 | 5 7 8 | 4 9 2
5 2 9 | 1 3 4 | 7 6 8
4 8 7 | 6 2 9 | 5 3 1
---------------------------
2 6 3 | 4 1 5 | 9 8 7
9 7 4 | 8 6 3 | 1 2 5
8 5 1 | 7 9 2 | 6 4 3
---------------------------
1 3 8 | 9 4 7 | 2 5 6
6 9 2 | 3 5 1 | 8 7 4
7 4 5 | 2 8 6 | 3 1 9
